Description

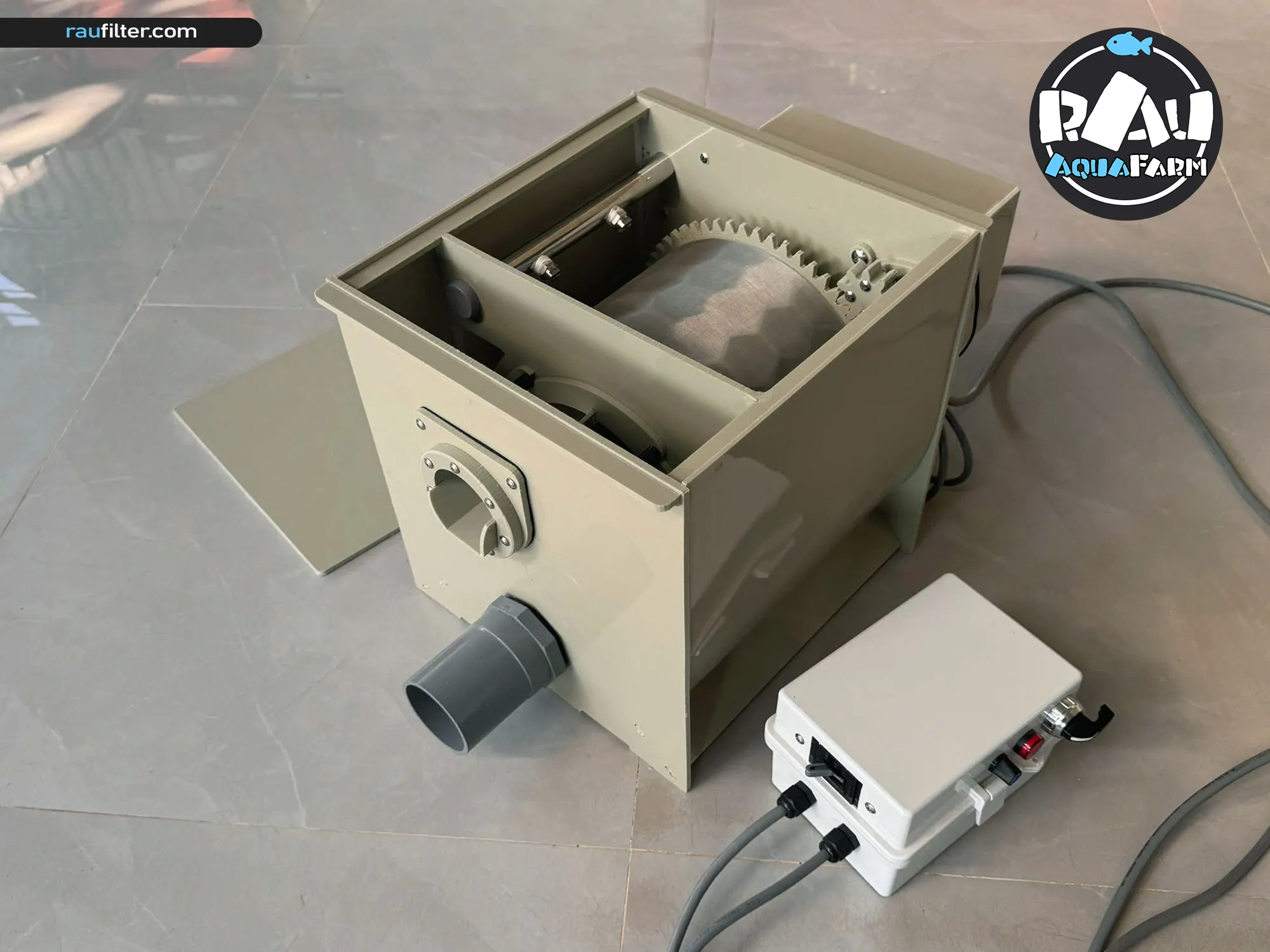

Drum Filter 1300GPH / 5m³h

• Type:  mechanical filtration

• Maximum output:  5.000 liters per hour (1320 gallons per hour)

• Water volume:  up to 10.000 Liters (29000 Gallon)

• Automatic start system:  Yes

• Overflow system:  Yes

• Power:  110-240V

Suitable for: aquaculture, aquaponics systems, fish ponds.

Plastic

• Millimeters  (L x W x H): 420×300×320

Plastic box made of food plastic 3mm. / 5mm.

One-piece filter housing with rounded shape, fewer areas of dirt accumulation. (no stagnant zones for water, less dirt accumulates)

Handles for easy installation and carrying of the filter

Mesh

Stainless screen adopts 316 stainless steel, 50  microns

Automation RDF

The accessories for the Electronics Box are supplied from Korea.

Automatic control unit, protected from moisture, with the possibility of manual control, 3 switching modes.

1. Automatic operation

2. Manual start of the filter

3. Service mode of operation

Power supply 2m cord

Machine box dimensions (L x W x H): 18 “x 14” x 12 “

Motor-reducer of drum rotation Steel body, stainless steel motor shaft. steel gears of the reducer 5 rpm Rotation side adjustment Quiet operation Minimum heat transfer

  110-240V

Included in the set RDF:

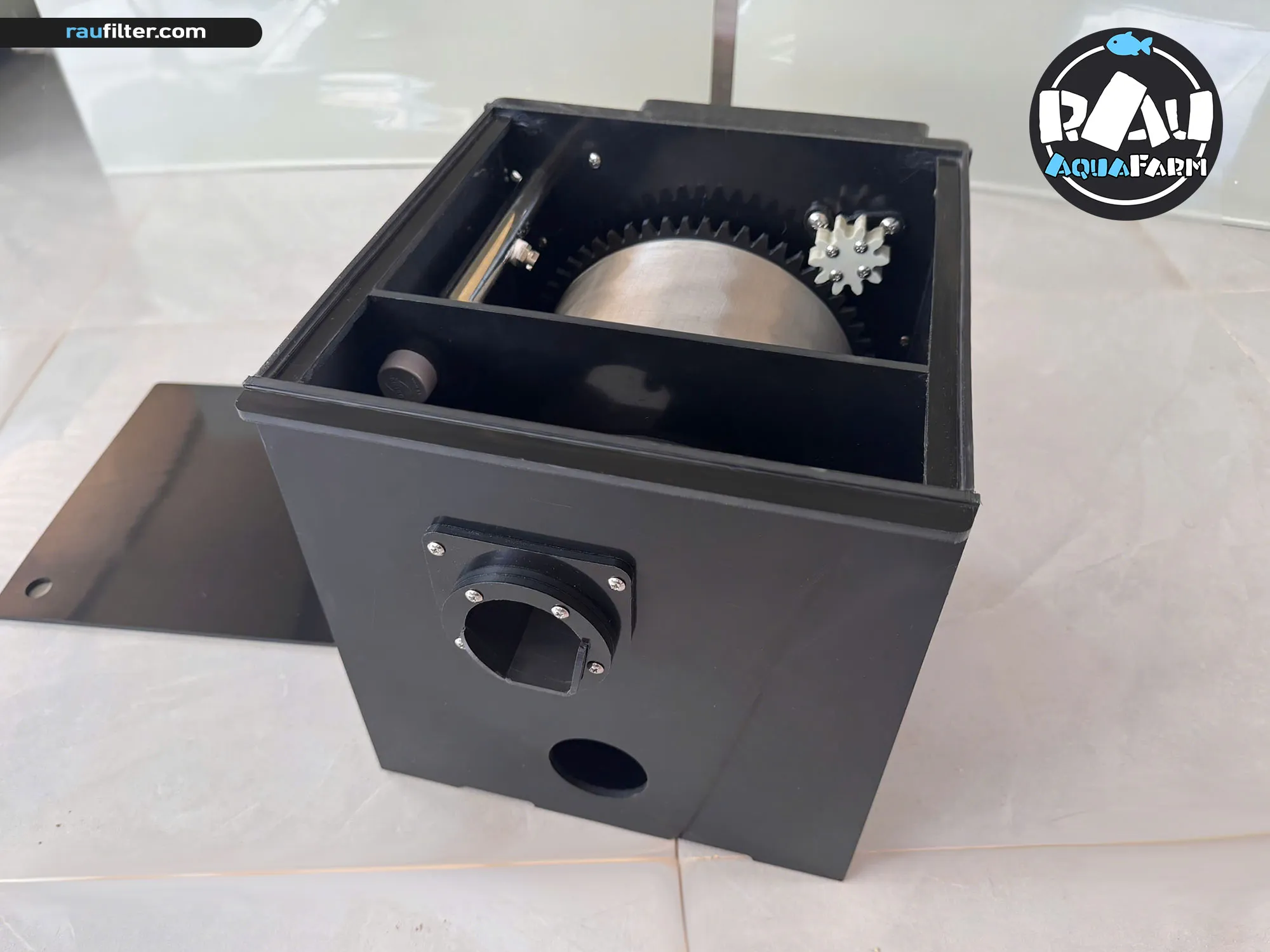

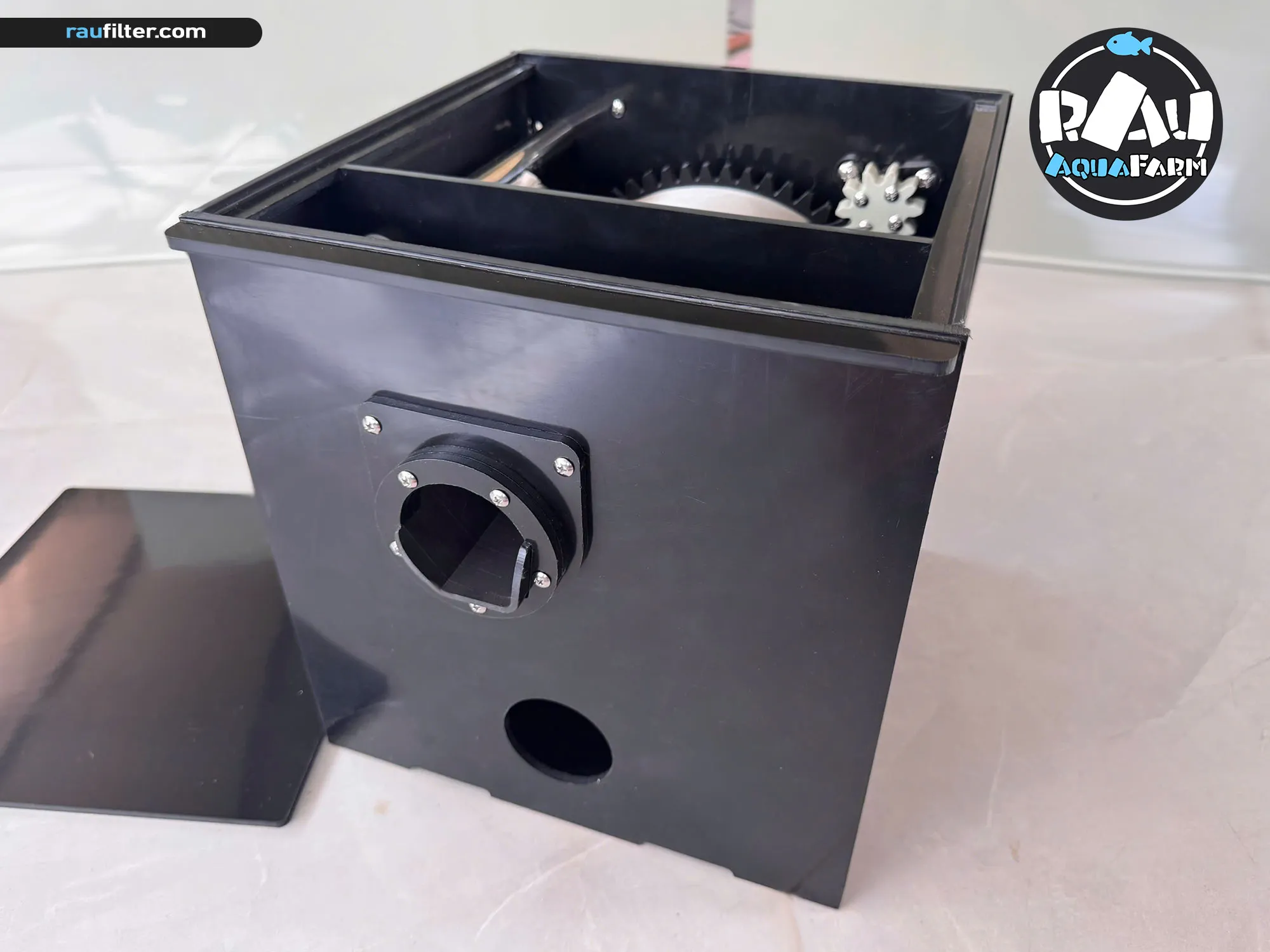

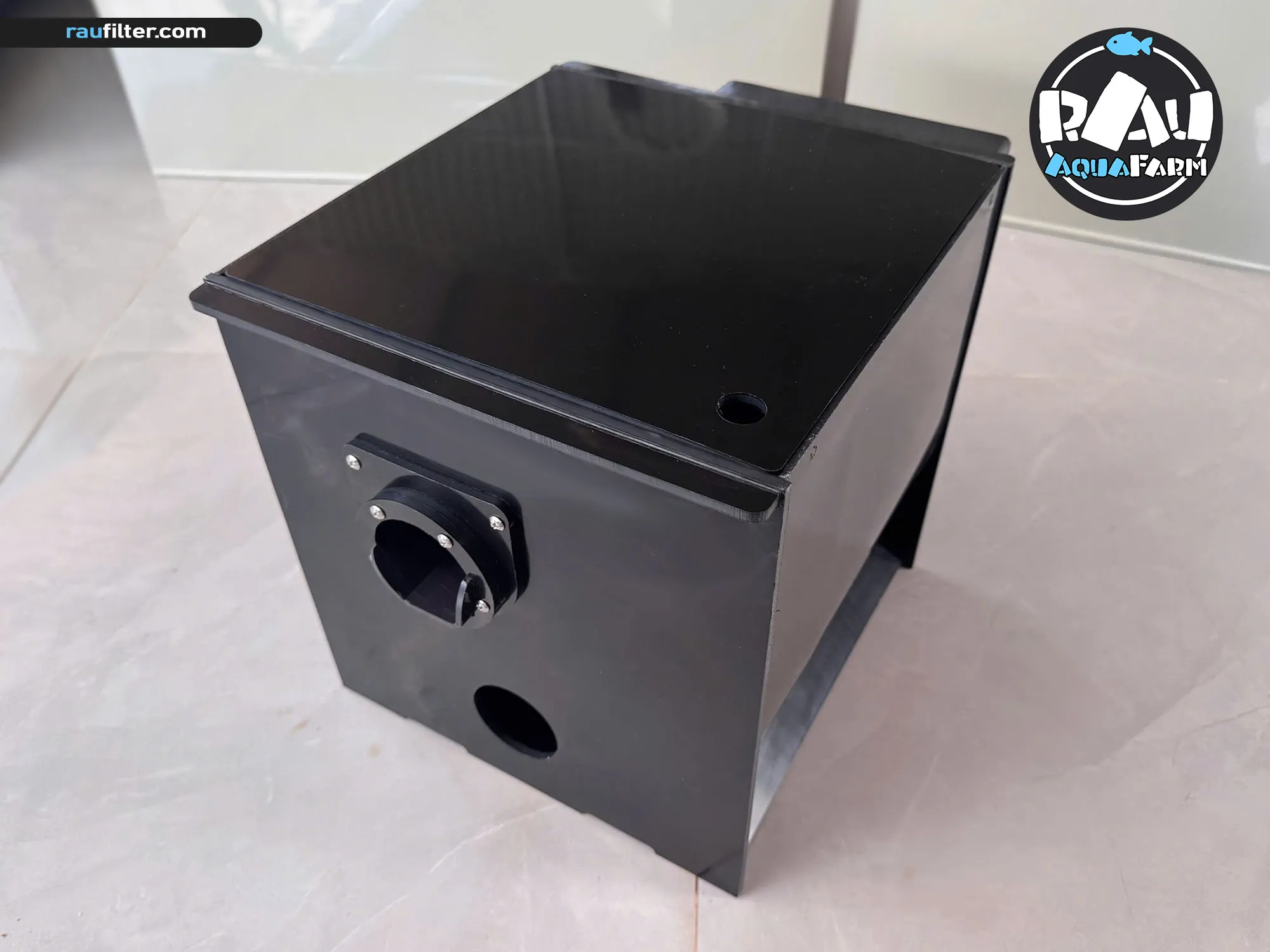

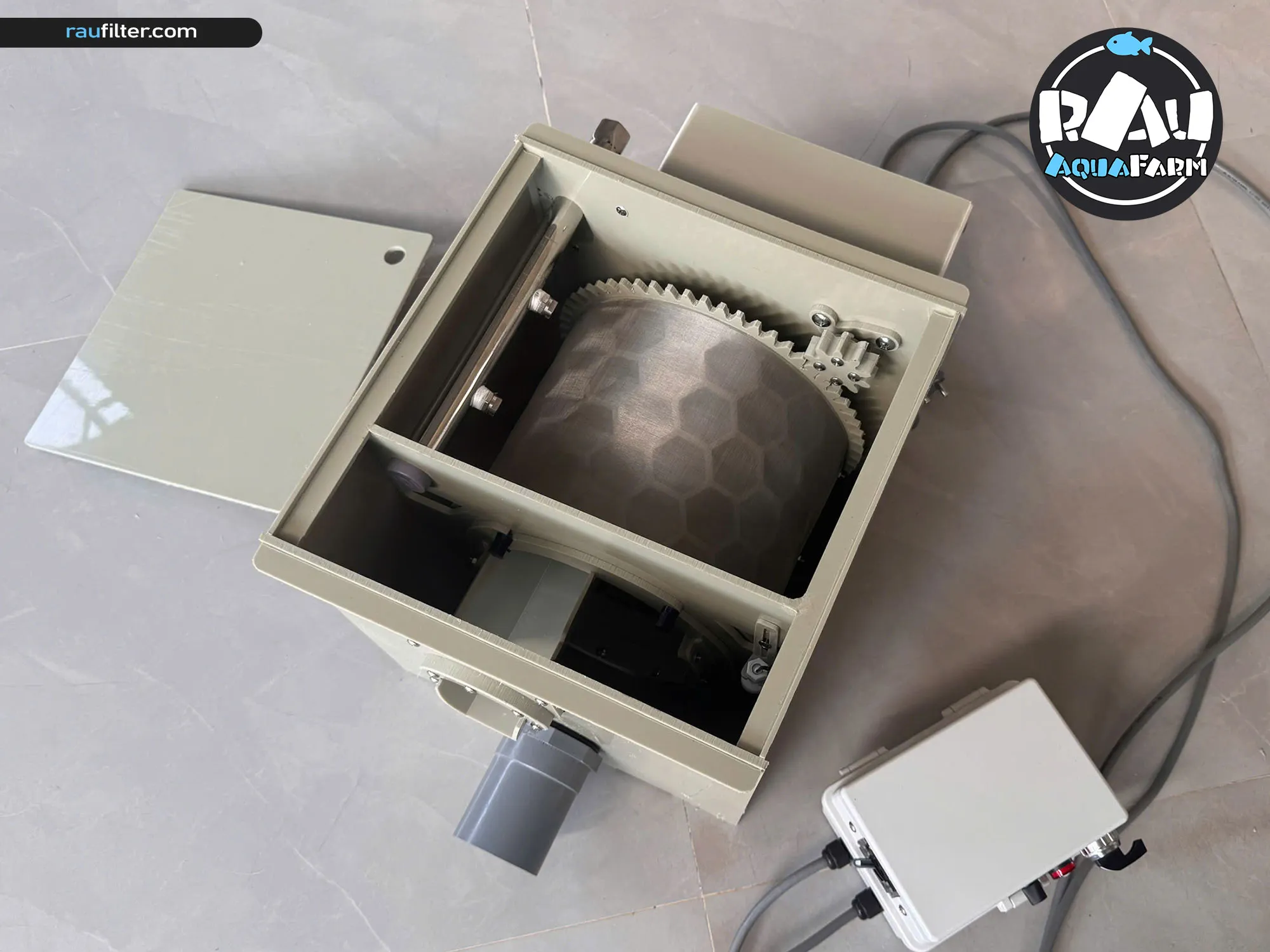

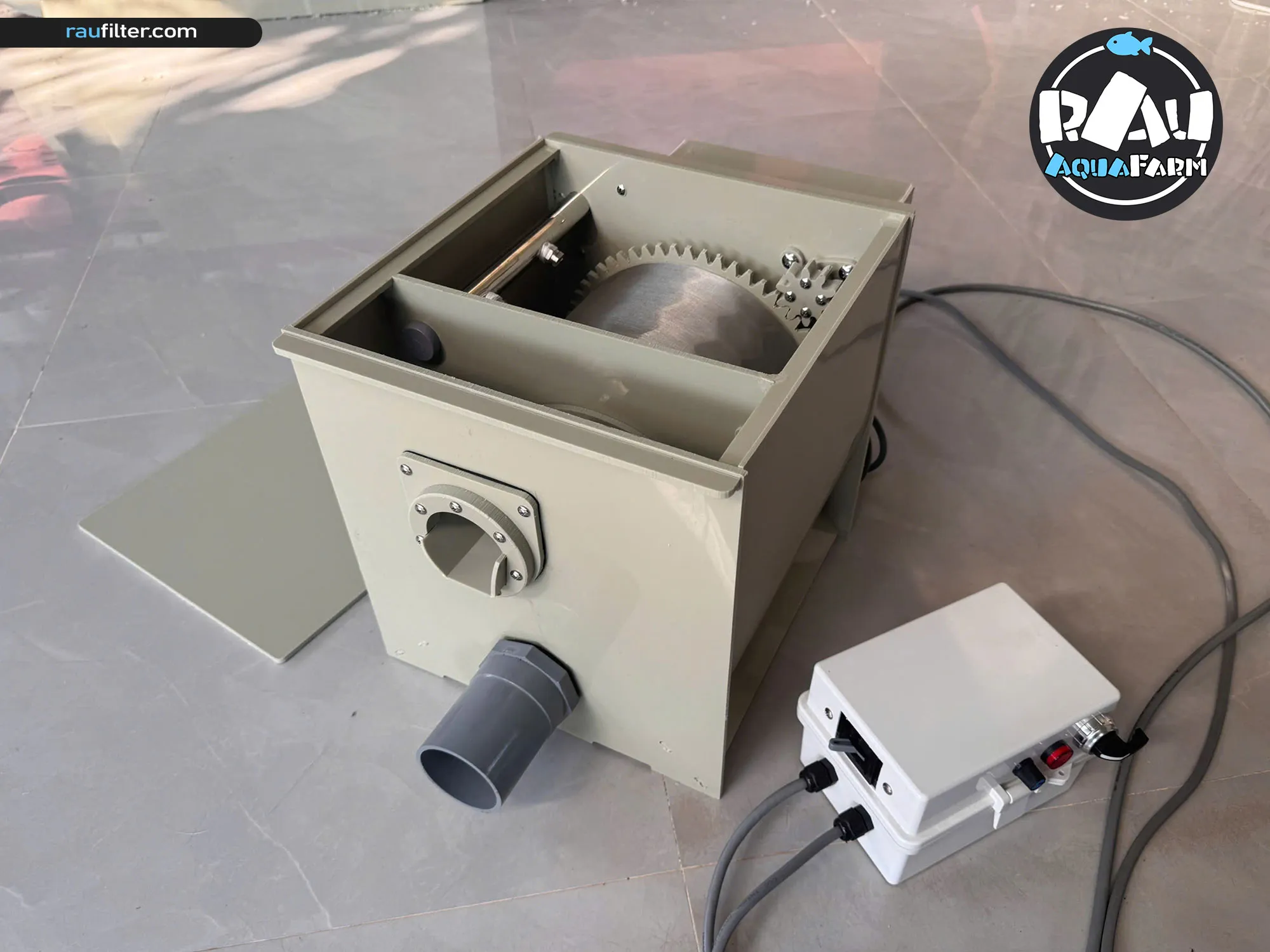

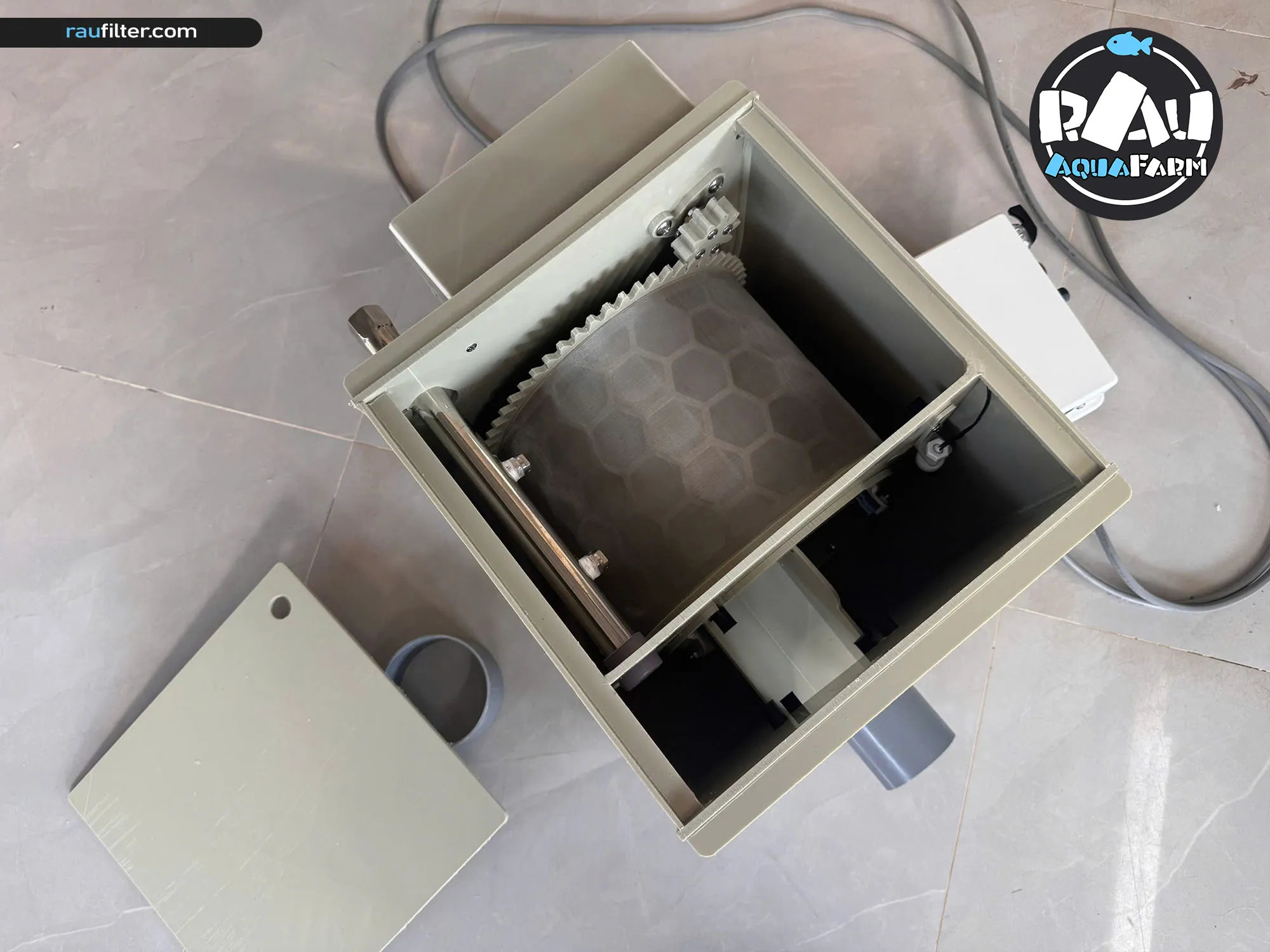

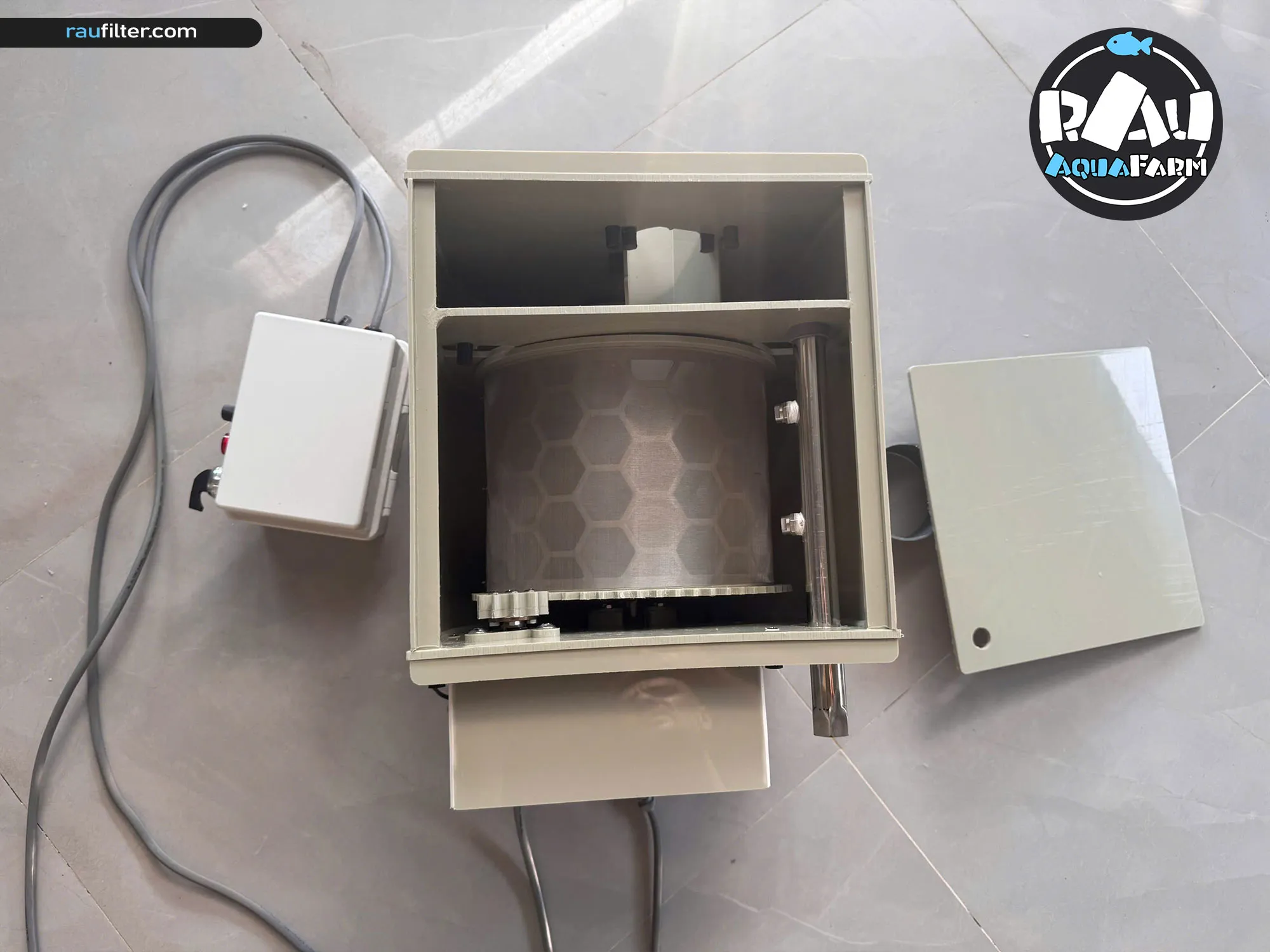

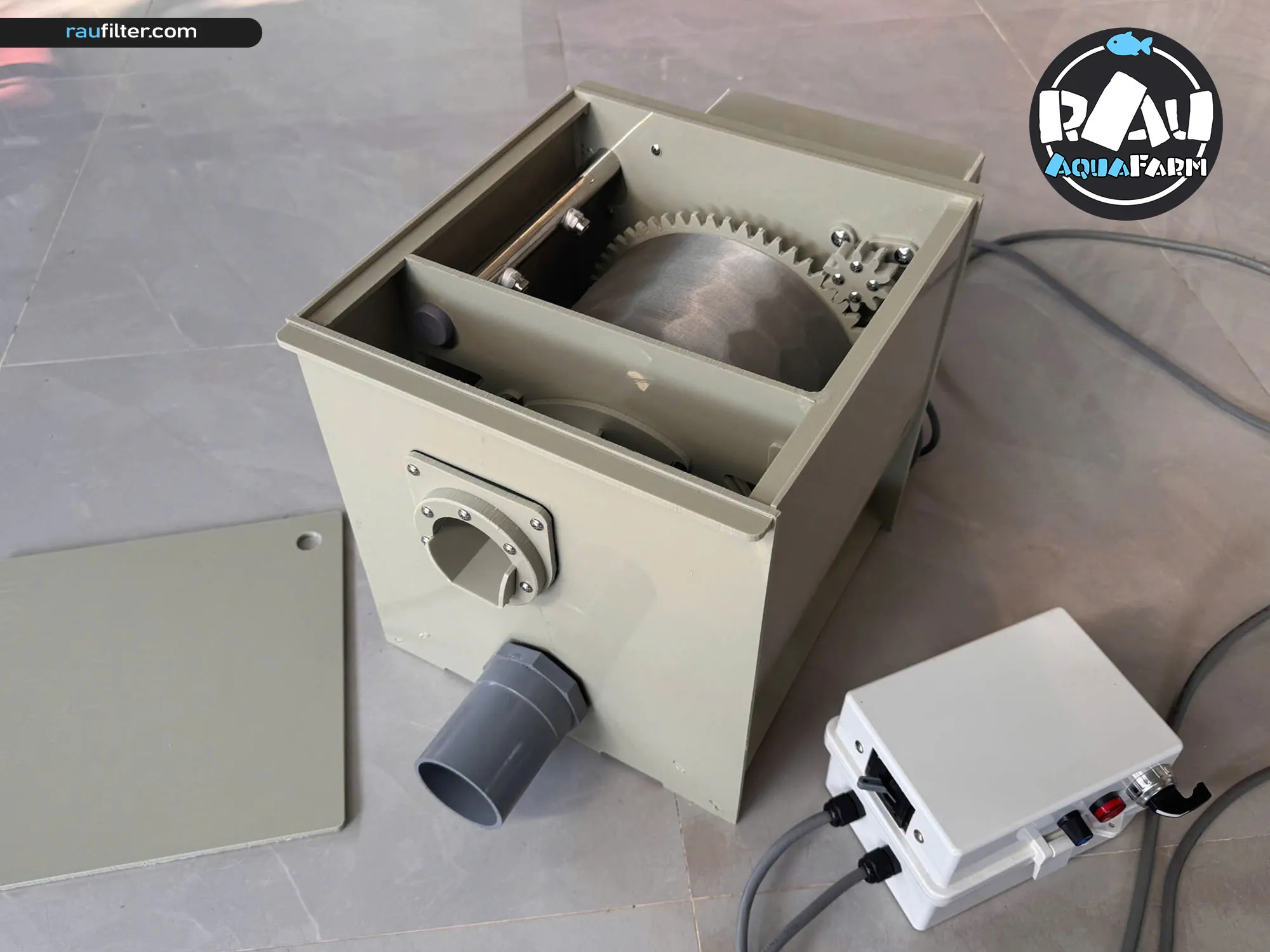

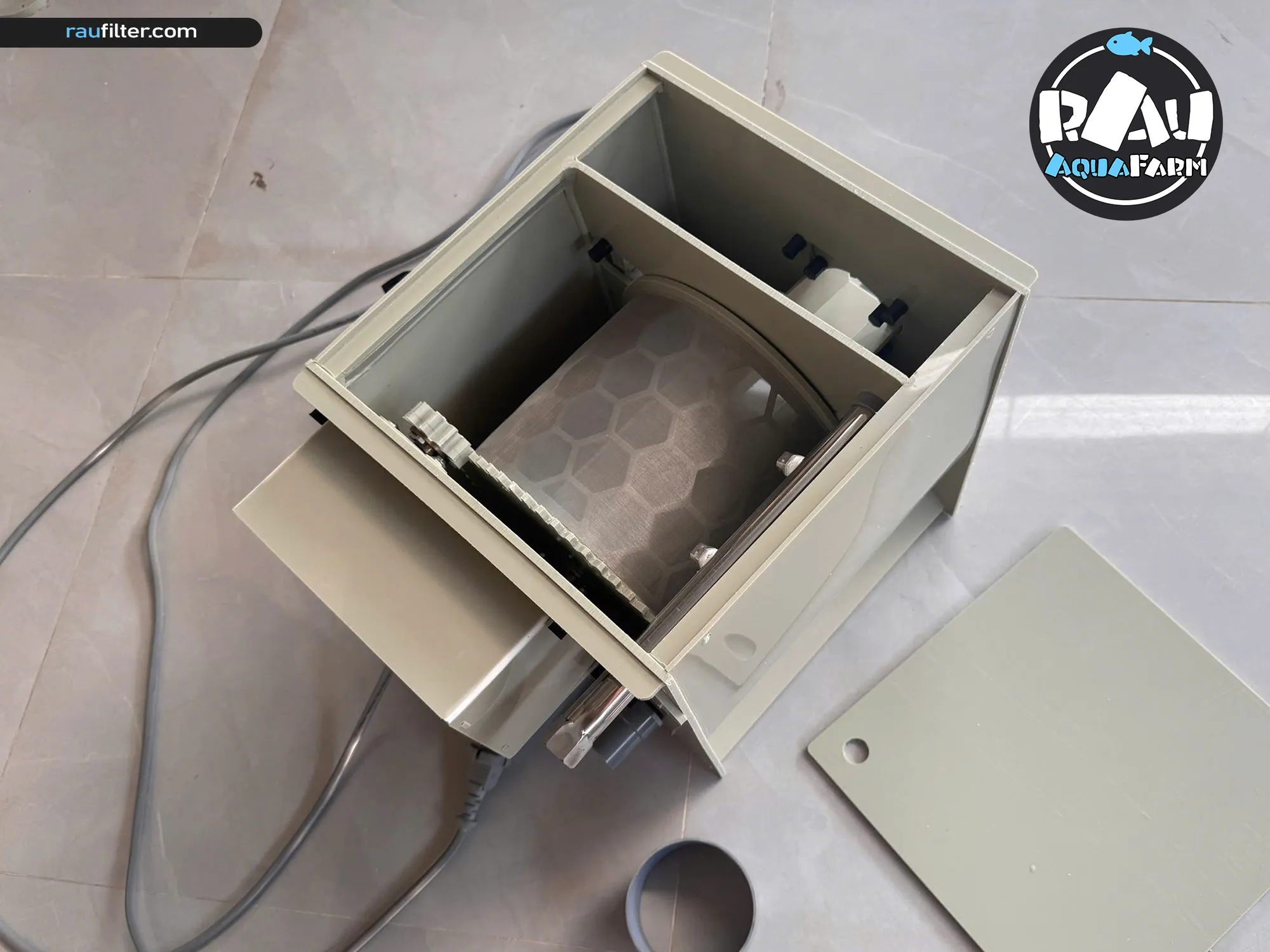

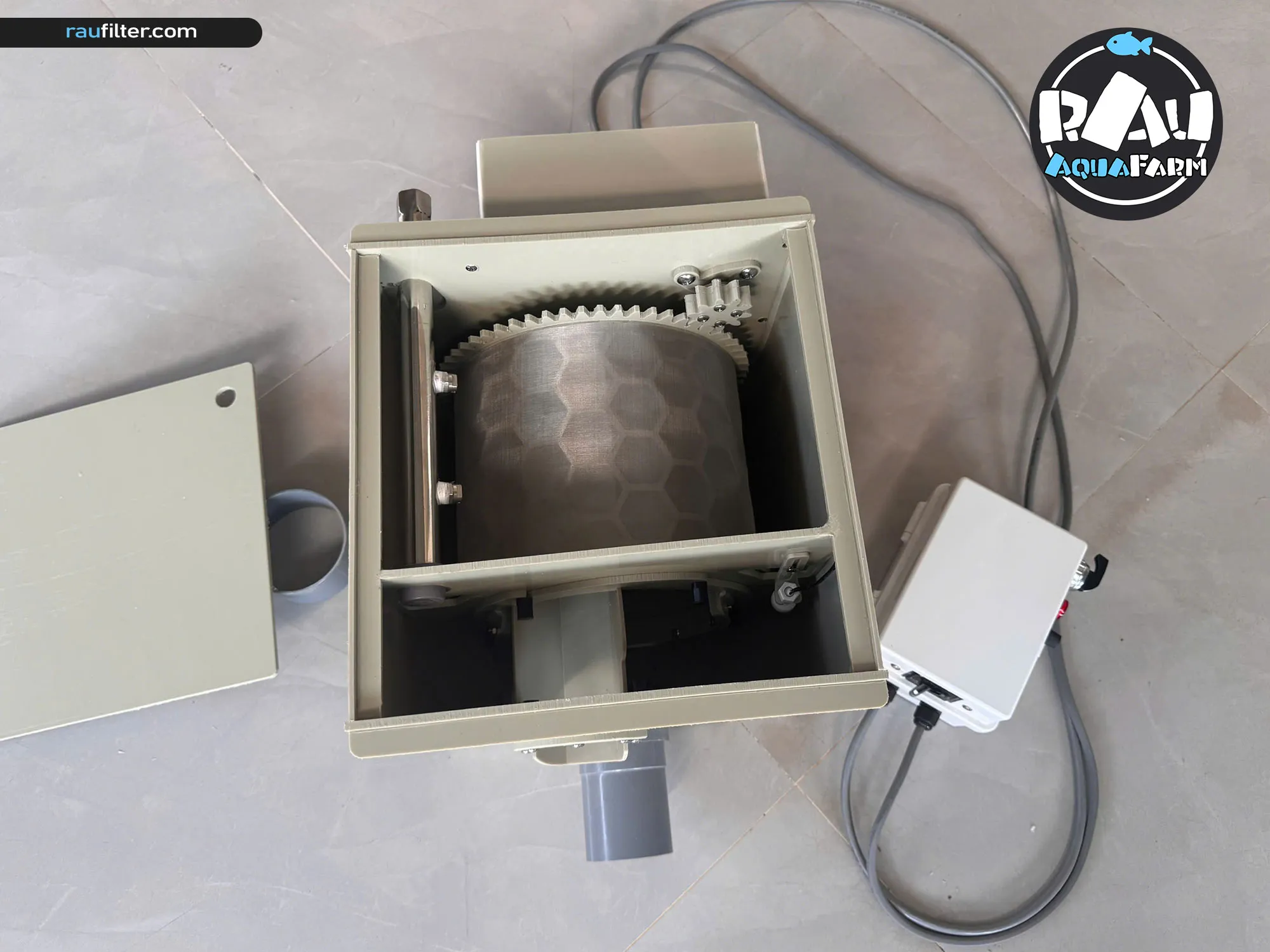

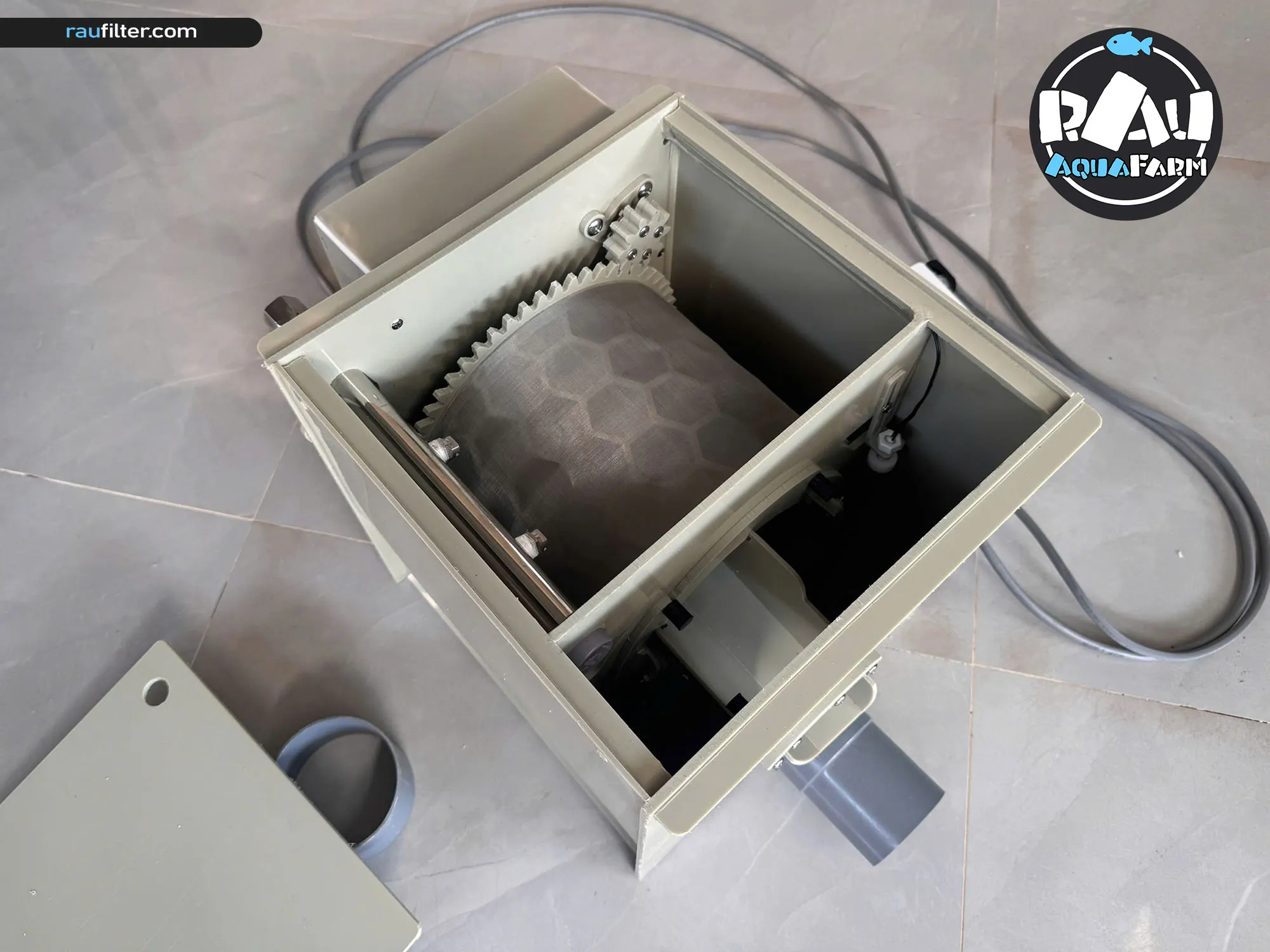

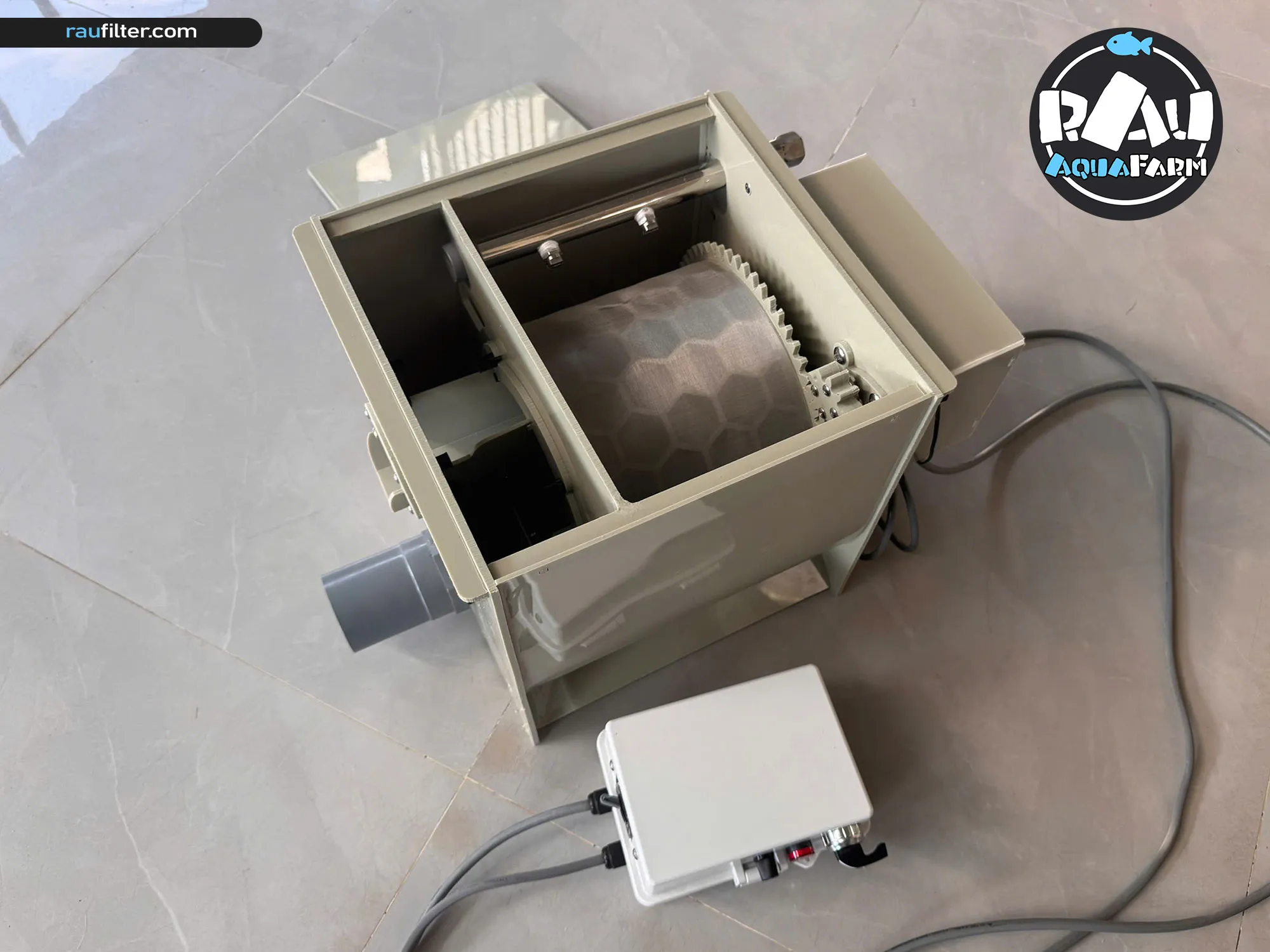

• Plastic drum filter housing with gearbox motor box and cover.

• The filter control unit operates from 110-240 volts.

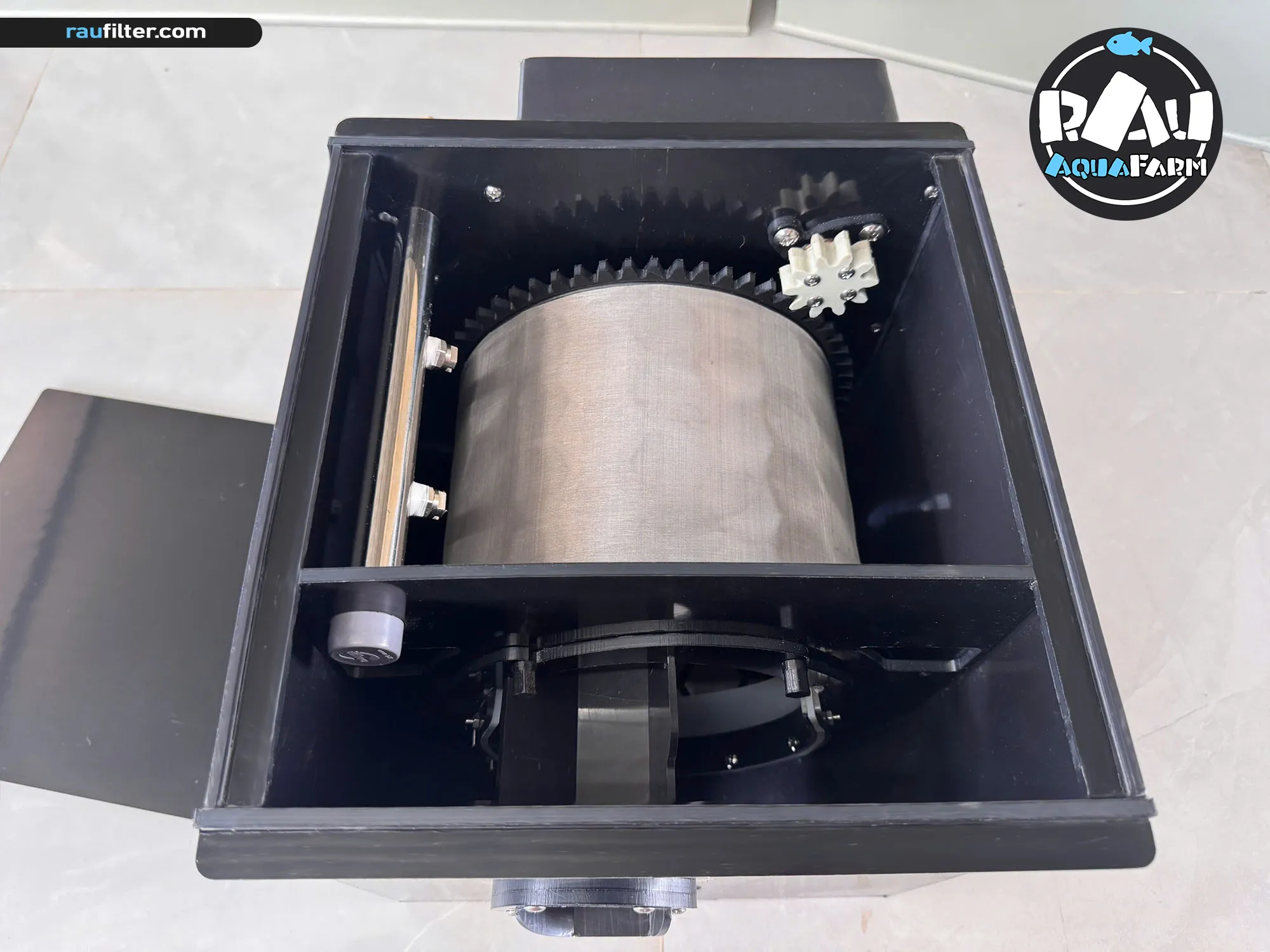

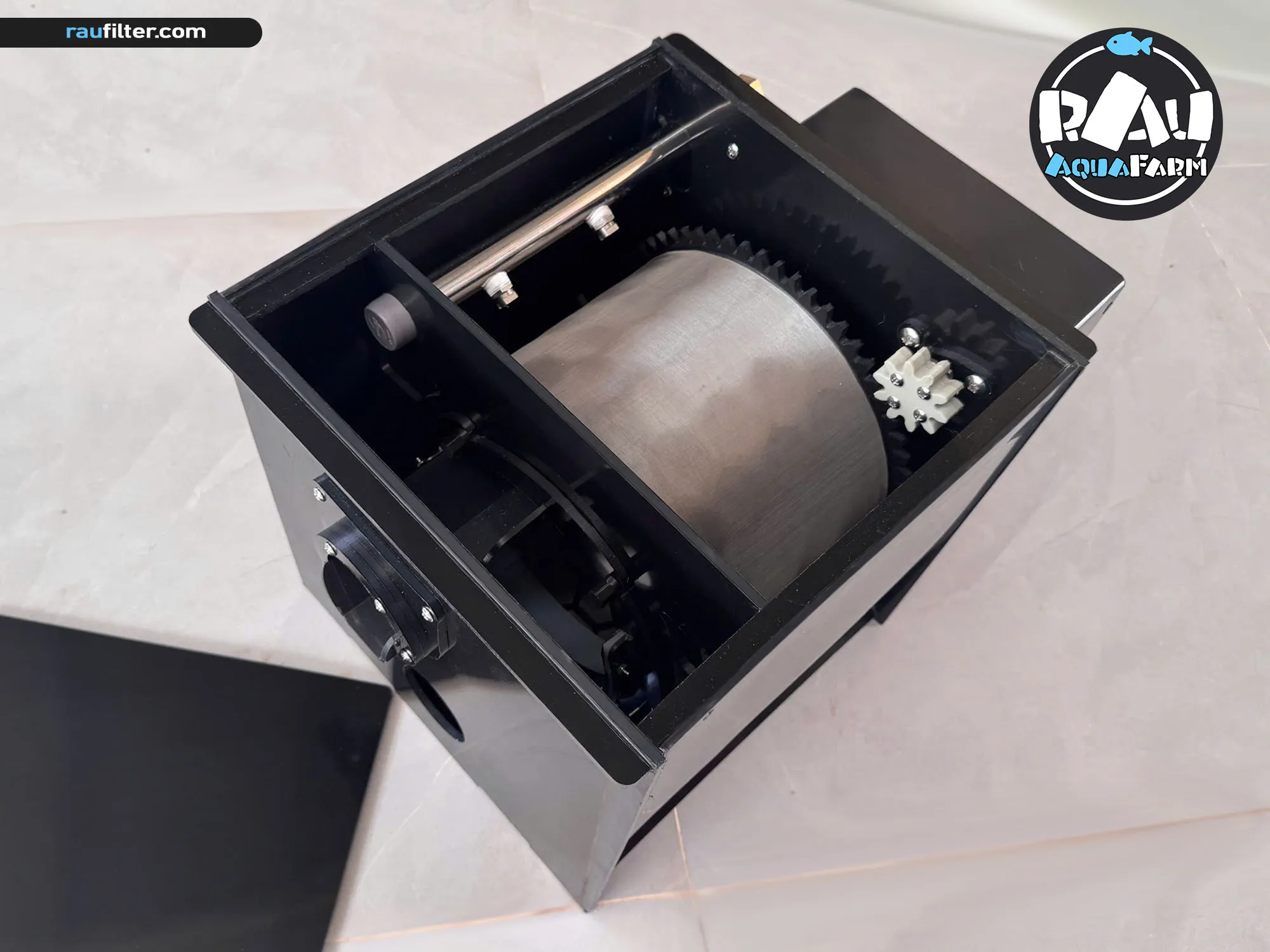

• Installed stainless steel mesh on the filter drum

• Stainless steel nozzles

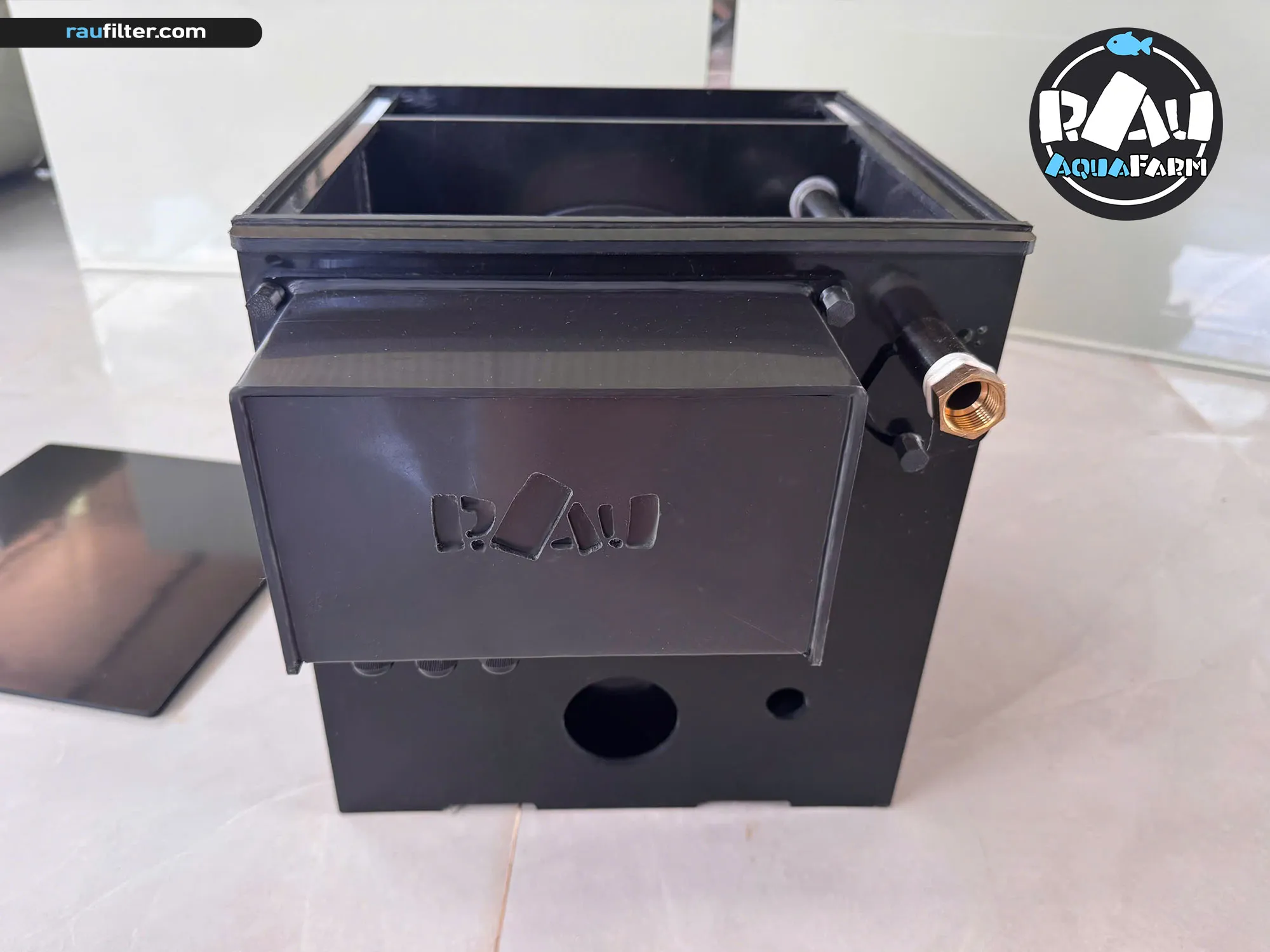

• One gear motor, the box for it is quick-release

• One water level sensor +1 spare

• Pipes for 2 outlets 60mm, 1 drain pipe 60mm

RDF filters (rotating drum filters) are suitable for home pond cleaning, for aqua farms, aquaponics farms, hydroponics, seafood farms. For various types of fish such as Koi carp, Telapia is also suitable for sturgeon, catfish, etc.
